How To: Jailbreak iOS 5.1 Tethered On iPhone 4 And iPhone 3GS With RedSn0w 0.9.10b6 [Windows]

It is no question that Apple unveiled some great new products and software yesterday! It is also no question that Apple released the iOS 5.1 firmware update. For all of those who are wondering whether you can Jailbreak the iOS 5.1 firmware or not, you will be glad to know that you can. This is because the iPhone Dev-Team have released an update for RedSn0w bringing support for the iOS 5.1 firmware. There are a few of things you need to keep in mind however.

Firstly, this Jailbreak is only for the iPhone 4 and iPhone 3GS; not the iPhone 4S. Secondly, this is a tethered Jailbreak and not an untethered Jailbreak that we have been very lucky to have on the iOS 5.0.1 firmware. As this is a tethered Jailbreak it means you will need to plug your iPhone into your computer and re-run RedSn0w to boot your iPhone into a fully operational state every time it loses power. Lastly, iBooks will not work on the iOS 5.1 firmware until the iPhone Dev-Team have had a chance to implement a patch.

If you understand the three points I have just brought up about this Jailbreak and meet the requirements you will be able to easily Jailbreak your iPhone 4 or iPhone 3GS on iOS 5.1 tethered. And in this how to guide from iJailbreak.com you will learn how to do just this using the Windows version of RedSn0w 0.9.10b6.

Note #1: This is a tethered Jailbreak and this Jailbreak will not work on the iPhone 4S.

Note #2: iBooks will not function correctly until the iPhone Dev-Team have had a chance to implement a patch.

Note #3: The old bootrom iPhone 3GS will be untethered on iOS 5.1.

Note #4: If you are looking to Jailbreak your iPod Touch 4G or iPod Touch 3G click here. If you would like to Jailbreak your first generation iPad click here.

RedSn0w 0.9.10b6 Tethered Jailbreak (Windows)

Step 1: The first thing you will need to do is download RedSn0w 0.9.10b6 for the Windows operating system using the download mirror below or through the iJailbreak Downloads Section.

Download RedSn0w 0.9.10b6 for Windows

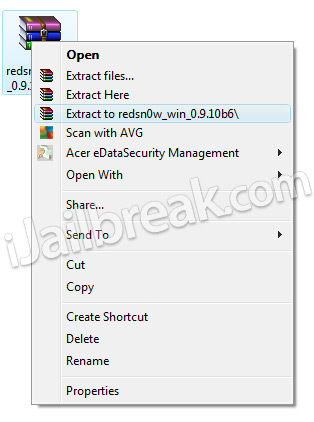

Step 2: Once you have downloaded RedSn0w you will need to extract it to your desktop by right clicking on the RedSn0w.zip file and then clicking the extract to folder option.

RedSn0w 0.9.10b6 Windows

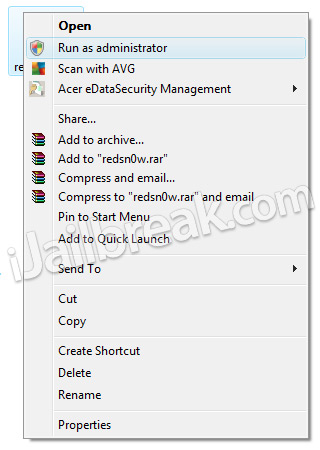

Step 3: Next you will need to launch RedSn0w by right clicking on the redsn0w.exe shortcut and then clicking the run in administrator mode option.

RedSn0w 0.9.10b6 Windows

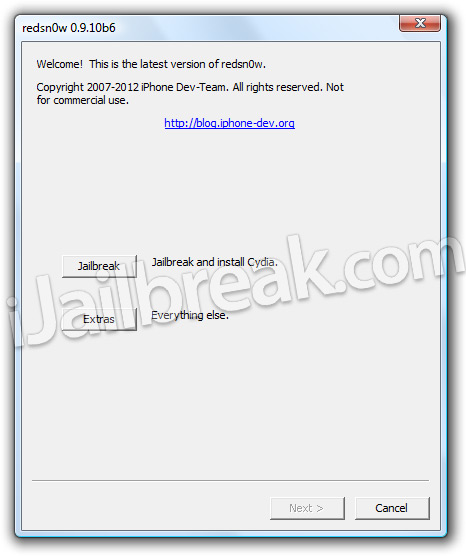

Step 4: With RedSn0w running you will need to click the Jailbreak button.

RedSn0w 0.9.10b6 Windows

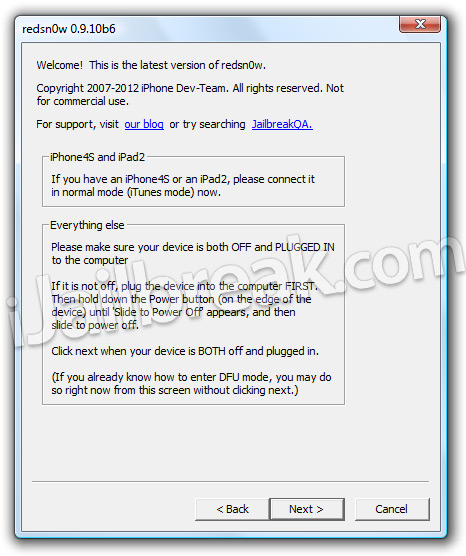

Step 5: After clicking the Jailbreak button you will come to a screen where you will need to put your iPhone into DFU mode.

RedSn0w 0.9.10b6 Windows

Read through and follow the instructions presented to you which is to plug in and power off your iPhone and then click the next button when you are ready to begin the DFU mode process.

Step 6: When you click the next button you will need to follow the instructions presented to you in real-time to put your iPhone into DFU mode.

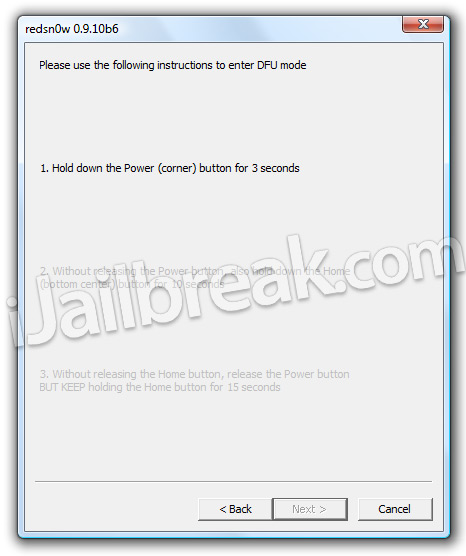

  • Hold down Power (corner) button for 5 seconds.

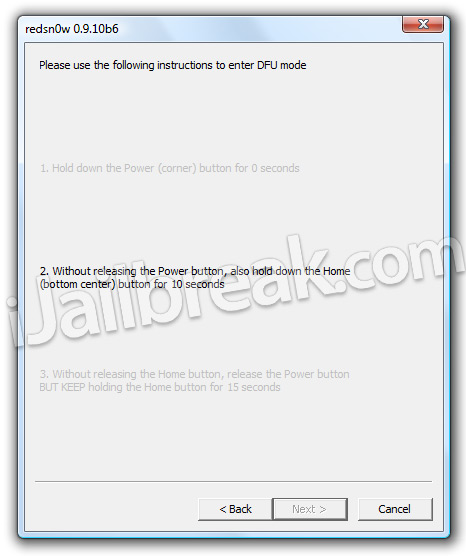

  • Without releasing the Power button, also hold down the Home (bottom center) button along with the Power button for 10 seconds.

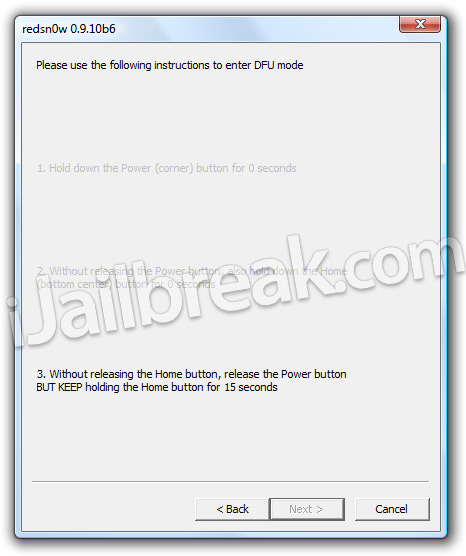

  • Without releasing the home button, stop holding down the power button for up to 15 seconds.
RedSn0w 0.9.10b6 Windows
RedSn0w 0.9.10b6 Windows
RedSn0w 0.9.10b6 Windows

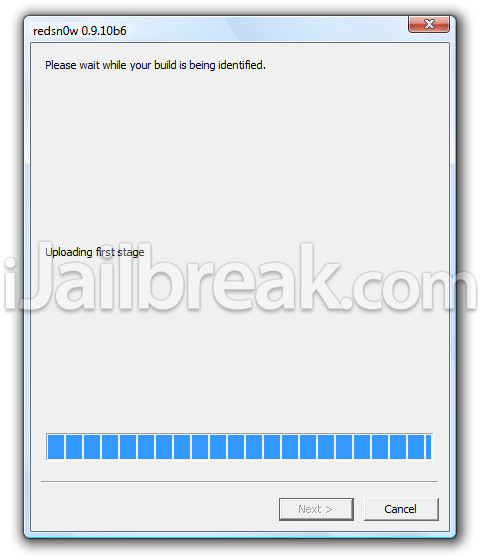

Step 7: After you successfully enter DFU mode RedSn0w 0.9.10b6 will begin preparing your iPhone for the iOS 5.1 Jailbreak.

RedSn0w 0.9.10b6 Windows

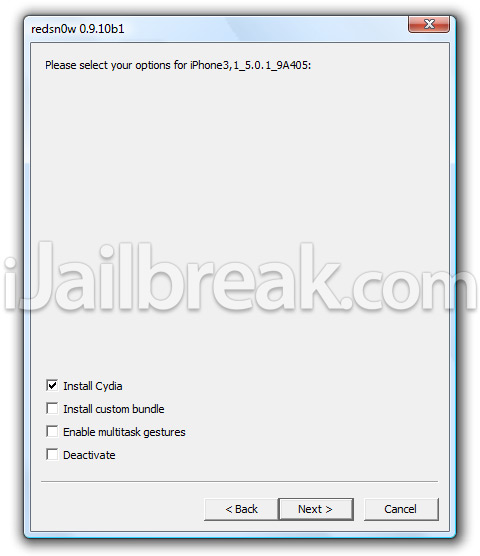

Step 8: Once RedSn0w has finished preparing your iPhone for the iOS 5.1 Jailbreak you will be asked you to specify options to go along with your Jailbreak. The only option that you actually need to make sure is checked is the Install Cydia option. Once you have ensured this option is checked, and any other options you may want, click the Next button.

RedSn0w 0.9.10b6 Windows

Step 9: After you have specified your Jailbreak options you can click the next button and RedSn0w 0.9.10b6 will begin jailbreaking your iPhone. DO NOT interrupt or use the computer during this time. When your iPhone is finished being jailbroken it will boot up with the Apple logo and not go any further. This is because this is a tethered Jailbreak and you will need to boot tethered with RedSn0w in order to get your iPhone in a working state again.

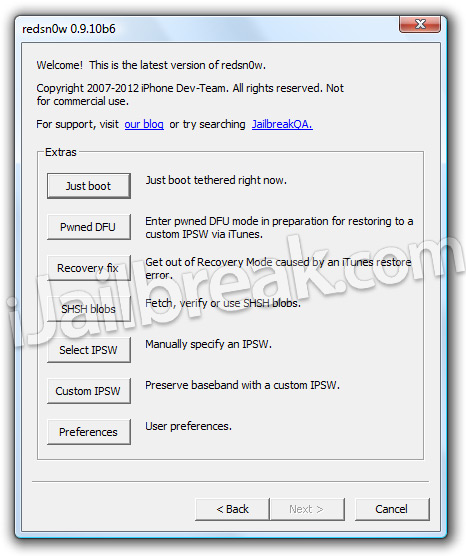

Step 1o: As explained previously when you Jailbreak your iPhone running iOS 5.1 you will have a tethered Jailbreak. Meaning in order for your iPhone to turn back on you will need to boot it using RedSn0w (this applies every time your iPhone loses power). To do this launch RedSn0w again and click the Extras Button > then click the Just boot button and you will simply need to put your iPhone into DFU mode again.

RedSn0w 0.9.10b6 Windows

You should now have a tethered Jailbreak on your iPhone 4 or iPhone 3GS running the iOS 5.1 firmware. For more tutorials visit the How To Jailbreak Section. Leave any questions in the comments.
